The block solution for non-carbonated and/or flavouerd water
Well though-out block philosophy
The ErgoBloc LM promotes block technology decisively. How that? It represents the block concept with a determination that is unrivalled. The ErgoBloc LM does not only combine individual machines but it also is designed as a holistic system with one central unit each for the control system, the drive and the operation.
At a glance

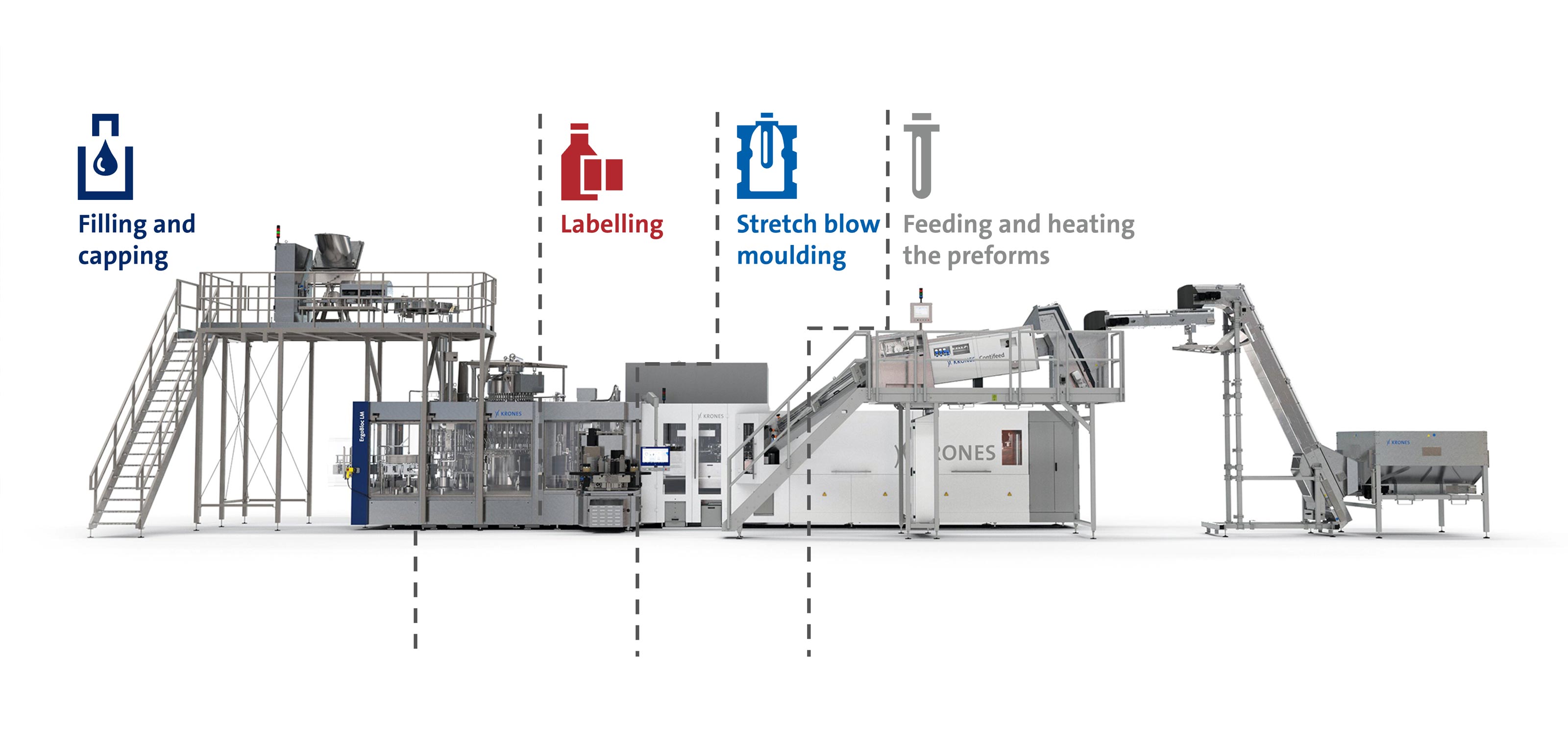

- Functions: Stretch blow moulding, labelling, filling and capping
- Output: up to 55,000 containers per hour*
- Processing range:
- Non-carbonated and/or flavoured water
- Cylindrical containers made of PET
- Standard and lightweight containers
- Container volumes of 0.2 to 2.0 litres
- Containers of up to 100 percent rPET
- Plastic reel-fed labels
*depending on the processing range
LM = Liquid Medium
The design
Components
- Torsion-resistant platform with skip-and-run technology
- Only four internal horizontal preform and container transfer points
- Actively controlled transfer grippers
- Five high-precision Monotec servo motors with real-time synchronisation
Infrared heating technology
- Parabolic reflector for top infrared emitter
- Adjustable base reflectors: adjustable to the respective preform length
- Maintenance-free system of ceramic reflectors
Air Wizard Triple
- Further developed compressed air recycling system with intermediate pressure levels for internal re-use of the compressed air
- Automatic self-optimisation of the blowing air recycling process
- Significantly reduced switching time dispersion
Why label first and fill afterwards?
- Full bottles can have varying internal pressures.
- These variations can impact the labelling result.
- The bottles do not have any unwanted moisture.
Solution: The ErgoBloc LM ...
- labels the bottles before filling them.
- pressurises the empty bottles with compressed air.
Result
- Consistently excellent label fit
- Optimum conditions for lightweighting
- Ideal access for handling parts change-over
- Optimal accessibility from three sides
- "No bottle – no label" function
- Reduced hotmelt consumption due to "Gravure Glue Application"
- Unique servo motor technology
- Flexible selection of the pitch
- Maximum stable handling of thin, sustainable films
Benefits to you

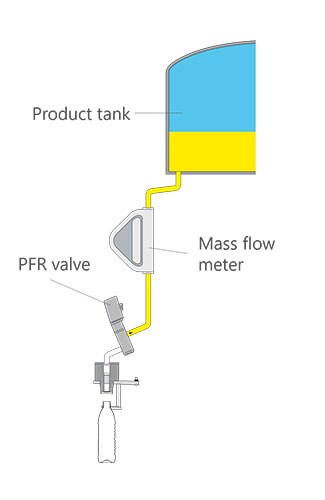

- Mass flow meter for precise dosing of conductive and non-conductive water
- State-of-the-art hygienic design
- PFR filling valve
- Variable filling speed control
- Electronic controller integrated directly in the valve
- Product tank
- Product feed from top
- Complete draining possible
- Omission of rotary media manifold
- Labyrinth seal for protection against contamination
- Tabletec front table
- Slanted plate with central drain
- Lubrication-free drive
- Smaller clean room volume
Bottle design and moulds
Creative and in line with the market
At a glance
- Four production centres worldwide with state-of-the-art manufacturing technology
- Container design experts at all four locations
- Design and production of mould types for all Contiform series
- Mould validation on our own technical centre systems
Benefits to you
- Customer-oriented consulting: Creative, functional, unique
- Individual designs with a view to customer requirements and feasibility in the beverage line
- Experience from more than 20,000 moulds per year
Benefits to you
Four process steps – one operator
The block is designed as one unit in which all essential control and function elements are centrally combined. This way, just one operator can easily operate the entire ErgoBloc LM on his own.
Energy savings
From optimised infrared heating technology to consistently implemented servo drive technology: The topic energy efficiency goes all the way through the block just like a red thread. Especially ambitious savings goals can be realised with the Air Wizard Triple compressed air recycling system.
Focus on the essentials
The ErgoBloc LM has been planned as a single, integrated machine and it is designed exactly for one defined application. This allows to go without many cost-intensive elements. Therefore, it only needs one central touch-screen for all functions and only requires one single labelling station.
Cost-efficient customisation
The pre-defined option packages enable to adapt the block to special requirements and keep the costs as well as the commissioning time low at the same time.
Trouble-free continuous operation
Full power with no breaks: The labelling module automatically detects bottle gaps and does not apply glue or labels in this case. Disruptions due to missing bottles and unnecessary glue and label consumption are therefore not an issue.
Small footprint
The ErgoBloc LM requires up to 30 percent less space than conventional block variants.
Beverage containers made from rPET
Material properties, processability, food grade quality: you can find all kinds of interesting facts about the use of recycled PET in our free white paper.
This is why the ErgoBloc LM is enviro-classified
Energy efficiency
- Increased station performance during stretch blow moulding and labelling
- Reduced energy consumption thanks to the omission of transfer starwheels and redundant components
- Height-adjustable base thermal shield and frequency-controlled neck finish cooling system
- Energy-efficient separated vacuum during labelling
Media efficiency
- Efficient cooling of the entire block
- Air Wizard Triple air recovery system
- No compressed-air consumption during the filling process
Environmental compatibility
- Use of enviro-compliant lubricants
- Recoverable CIP media
This product is enviro classified
Top technology for ecologically efficient production
The Krones sustainability programme enviro: top technology for ecologically efficient production.
