Decanter technology for clean separation and strong results
Precise, hygienic, powerful

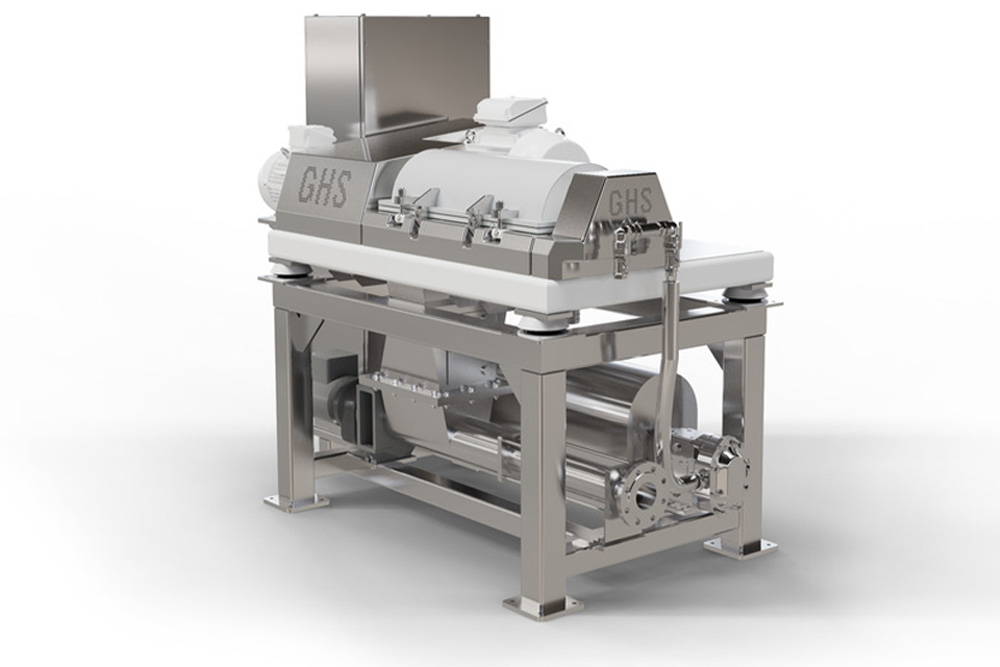

Whether for the manufacture of juices, vegetable oils or in recycling: Decanters play a key role wherever solids need to be separated from liquids. The UniPure S ensures efficiency, product reliability and process stability – and is therefore key to modern, sustainable production.
At a glance
- Decanter for the food industry
- Removes particles, suspended solids and microorganisms from juices, oils, dairy products, plant-based raw materials and during plastic recycling
- Gentle handling of sensitive media such as yoghurt, cream or fruit pieces
- Also suitable for highly viscous or paste-like products
- Maximum capacity: 3 tons per hour*

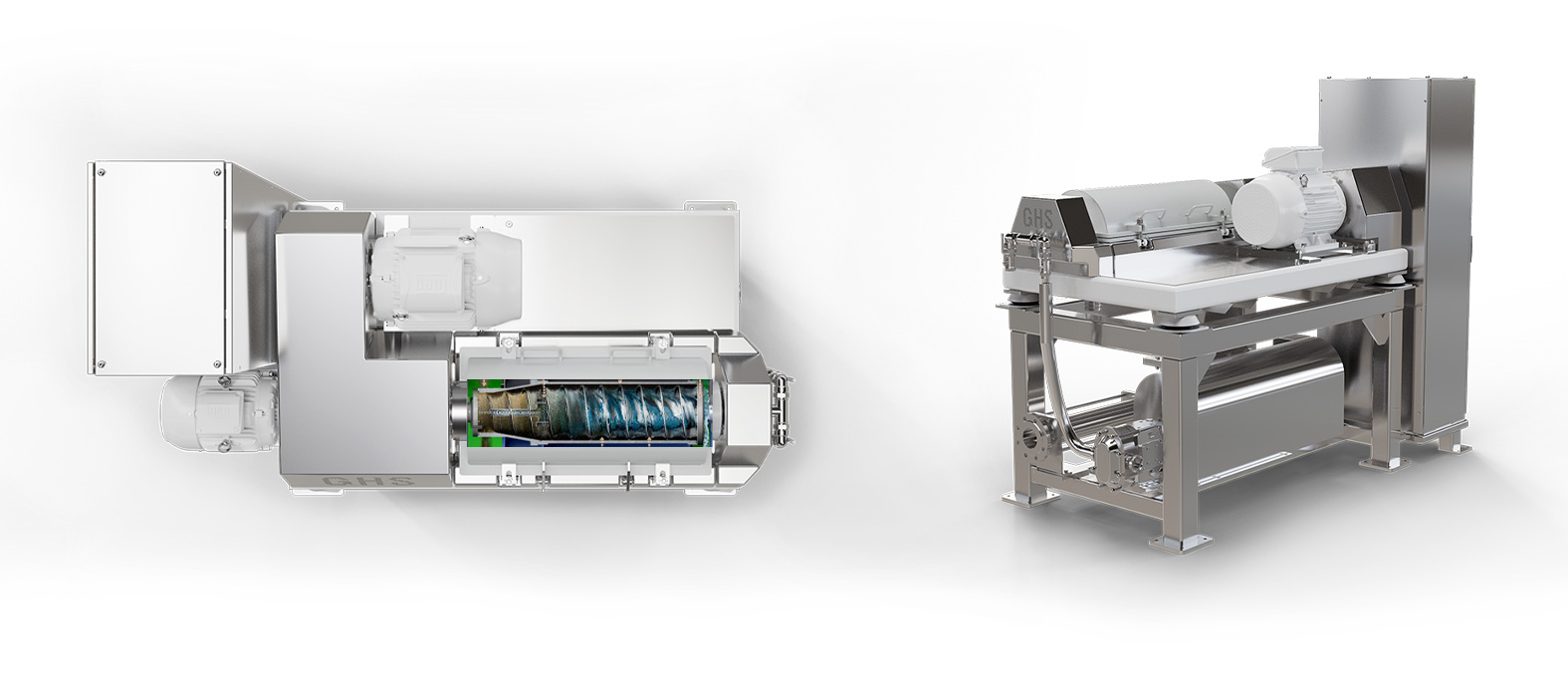

The components
Outlet for solids
Screw conveyor: Rotates inside the drum and continuously transports the separated solids out of the system.
Outlet for liquid
Infeed zone
Drum (centrifuge body) to generate centrifugal force.
Technical details
- Material: Stainless steel 1.4404 (alternatives available)
- Hydraulic throughput: 7 m³/h
- Max. capacity: Up to 3 t/h (depending on the application)
- Drum: Ø 220 mm, length 670 mm (optional 925 mm)
- Speed: max. 5100 rot./min → max. 3200 G
- Motor power: Drum 11 kW, worm 5.5 kW
- Gear torque: 1400 Nm
- Pumps: Ampco & mains contactor, each 5.5 kW
- Cleaning: CIP/SIP-capability
- Design: Hygienic for food applications
- Optional: ATEX approval for combustible media
Benefits to you
Hygienic design
- Construction without dead space prevents product sediments.
- Cleaning is executed efficiently by means of CIP or SIP – without dismantling.
- Smooth surfaces (Ra < 0.8 μm) minimised risk of germ contamination.
- Seals comply with FDA and EU regulations and are resistant to cleaning agents.
Gentle on the product
- Gentle handling protects sensitive products such as yoghurt or fruit pieces.
- Uniform product flow without pulsations or shear forces.
Process requirements
- Flow rate and pressure can be flexibly adjusted.
- Also suitable for highly viscous or paste-like media.
- Temperature resistant for hot filling and thermally demanding processes.
Maintenance and operating costs
- Fast and easy maintenance
- Robust design for high reliability and low downtime.
